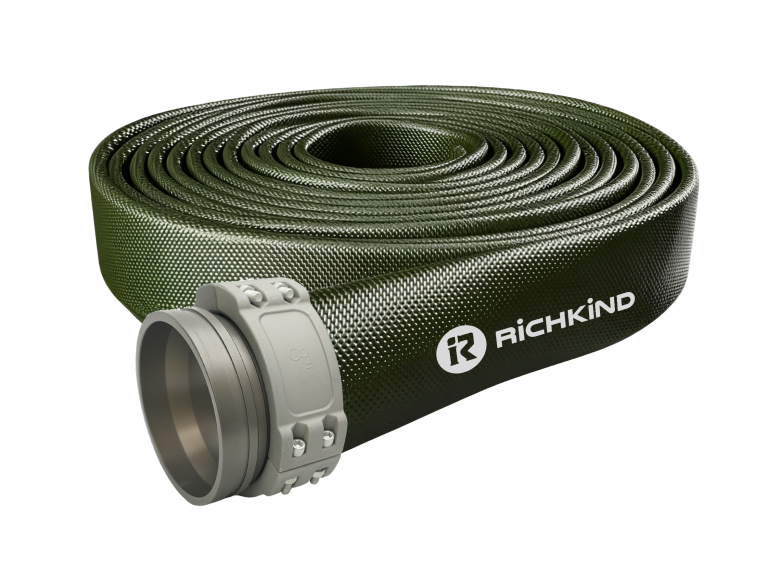

Oil Hose

Tech Specs.

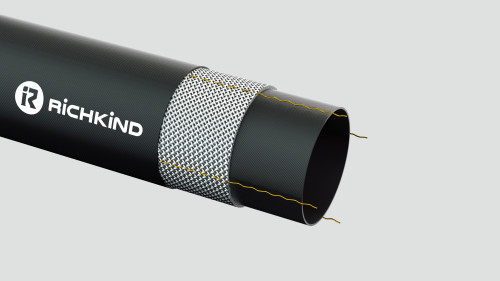

I.D		Tolerance	Working Pressure		Bursting Pressure		Wall-thickness	Unit Weight		Cooper wires	Total Resistance
inch	mm	mm	bar	psi	bar	psi	(mm)	Kg/m	lbs/ft	PCS	≤Ohm/m
2"	50	51~53.5	16	240	48	720	2.5~2.7	0.53	0.36	4	0.3
2"	50	51~53.5	28	420	84	1260	2.8~3.0	0.60	0.40	4	0.3
2.5"	65	63.5~65.5	17	255	51	765	2.7~2.8	0.61	0.41	4	0.3
3"	80	76~78	10	150	30	450	2.5~2.6	0.70	0.47	4	0.3
			17	255	51	765	2.8~2.9	0.75	0.50	4	0.3
			28	420	84	1260	3.5~3.6	0.93	0.63	4	0.3
4"	100	102.5~104.5	10	150	31	465	3.1~3.3	1.02	0.69	4	0.3
			16	240	49	710	3.4~3.6	1.20	0.81	4	0.3
			20	300	60	900	3.7~3.8	1.40	0.94	4	0.3
			28	420	84	1230	4.2~4.4	1.65	1.10	4	0.3
			42	630	126	1830	5.1~5.3	1.98	1.33	4	0.3
6"	150	152~154	10	150	32	480	3.0~3.2	1.65	1.11	4	0.3
			14	210	43	645	3.1~3.2	1.90	1.28	4	0.3
			16	240	49	735	3.3~3.5	2.00	1.34	4	0.3
			20	300	60	900	4.0~4.10	2.30	1.55	4	0.3
			28	410	84	1230	5.0~5.2	3.20	2.15	4	0.3
			42	630	100	1440	5.8~6.0	3.40	2.29	4	0.3
8"	200	203.5~205.5	10	150	31	465	3.3~3.4	2.30	1.55	4	0.3
			14	210	43	645	3.6~3.8	2.90	1.95	4	0.3
			16	240	50	750	4.1~4.3	3.20	2.15	4	0.3
			20	300	60	900	4.3~4.4	3.40	2.29	4	0.3
			28	420	84	1230	5.7~5.8	4.40	2.96	4	0.3
10"	250	254~256	10	150	32	480	3.5~3.7	3.00	2.02	4	0.3
			14	210	44	660	4.4~4.5	3.80	2.55	4	0.3
			16	240	50	750	4.5~4.7	4.20	2.82	4	0.3
			20	300	60	900	5.5~5.7	5.20	3.49	4	0.3

Tips : The hose working pressure listed above are only for the hose, the real pipeline or hoseline cooperarion pressure depends on the hose coupling and hose line system. Only use the suitable hose coupling and that are matched well with the hose pressure rate, the whole hose system can work well.
