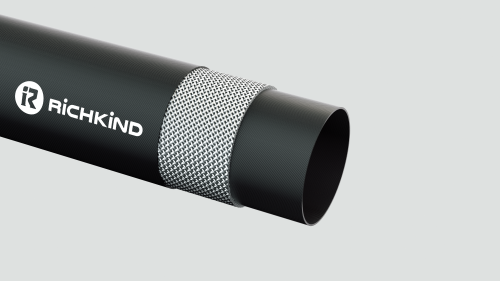

1.Structures:
(1) Outer layer : PU(Polyurethane) material
(2)Inner layer: PU(Polyurethane) material
(3)Middle Reinforcement:circular weaved high tensile strength Polyester (or Aramid)
(4)Processing: extruded through the circular woven reinforcement
2.Specifications:
(1) Inner Diameter (I.D):4"~6"
(2)W.P: 10 bar~ 14 bar, B.P:30 bar~ 42bar
(3)Standard Color: orange, other colors are also avaliable
(4) Max Single Length : 202m（660ft per roll)
(5) Operation Temperature:-60˚F~+176˚F (-50℃~+80℃）

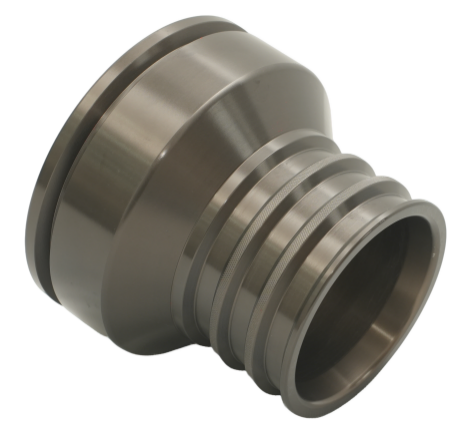

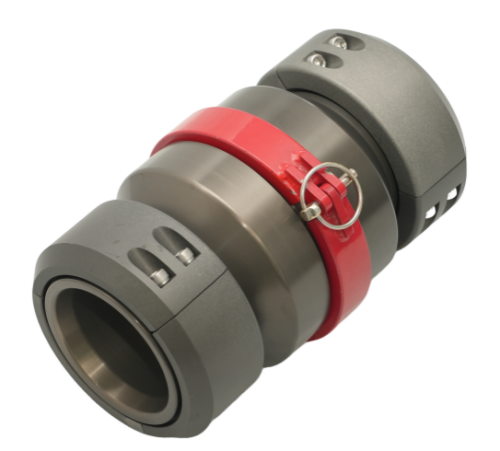

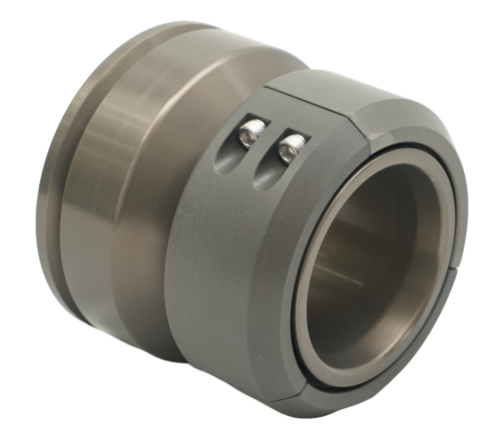

(6) Hose Fitting: Drag hose coupling (see followings) or Customization
(7) Logo & Marking: depends on customers or discussing to print
