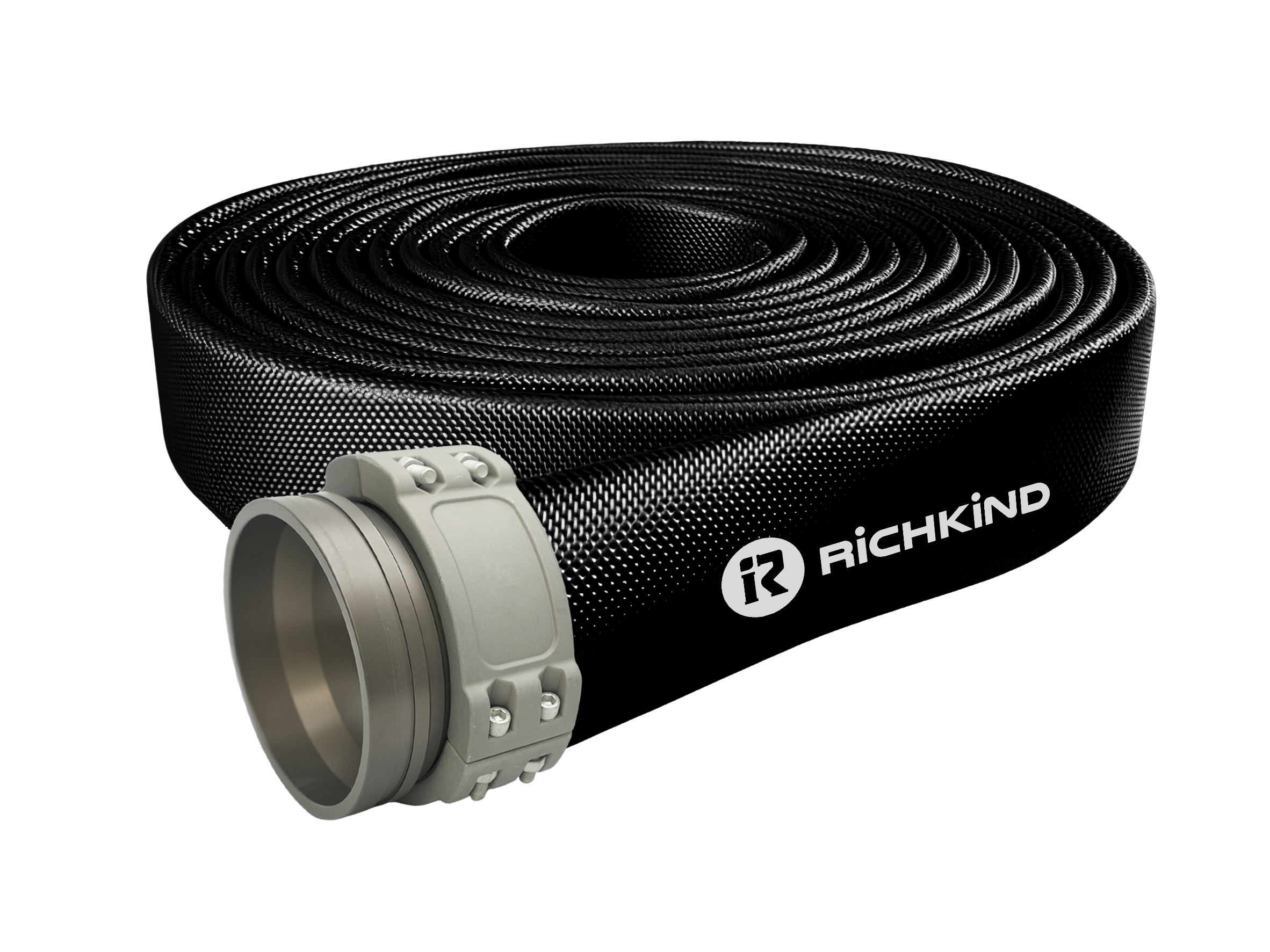

Frack Water Hose

Description

Frack water hose designed for oil&gas and coal-bed methane fracturing water supply. The hose is hydrolysis resistance, durability, flexibility, high flow and excellent resistance to abrasion,chemical corrosion ,weather,UV and Ozone.

Get a quote

Instruction
Data sheet
Related

Features.

1.Structures:

(1) Outer layer : PU(Polyurethane) material

(2)Inner layer: PU(Polyurethane) material

(3)Middle Reinforcement:circular weaved high tensile strength Polyester

(4)Processing: extruded through the circular woven reinforcement

2.Specifications:

(1) Inner Diameter (I.D):2"~20"

(2)W.P: 2 bar~ 60 bar, B.P:6 bar~ 150 bar

(3)Standard Color: Black, other colors are also avaliable

(4) Max Single Length : 202m （660ft per roll)

(5) Operation Temperature:-60˚F~176˚F (-50℃~+80℃）

(6) Hose Fitting:Vic LDHC, ,Storz,Flange or Customization

(7) Logo & Marking: depends on customers or discussing to print

Tech Specs.

I.D		Tolerance	Working Pressure		Bursting Pressure		Wall-thickness	Unit Weight
inch	mm	mm	bar	psi	bar	psi	(mm)	Kg/m	lbs/ft
2"	50	51~53.5	16	240	48	720	2.5~2.7	0.53	0.36
2"	50	51~53.5	28	420	84	1260	2.8~3.0	0.60	0.40
2.5"	65	63.5~65.5	17	255	51	765	2.7~2.8	0.61	0.41
3"	80	76~78	10	150	30	450	2.5~2.6	0.70	0.47
			17	255	51	765	2.8~2.9	0.75	0.50
			28	420	84	1260	3.5~3.6	0.93	0.63
4"	100	102~104	10	150	31	465	3.0~3.2	1.10	0.74
			16	240	49	1176	3.2~3.4	1.30	0.87
			28	420	85	1275	4.2~4.4	1.70	1.14
			42	630	126	1890	4.5~4.7	1.90	1.28
6"	150	152~154	10	150	32	480	3.0~3.2	1.70	1.14
			14	210	43	645	3.1~3.2	1.80	1.21
			16	240	49	735	3.3~3.5	1.90	1.28
			28	420	84	1260	5.0~5.2	3.20	2.15
			42	630	126	1890	5.8~6.0	3.50	2.35
			63	945	126/150	1890/2250	6.2~6.5	5.0	3.36
8"	200	203~205	10	150	31	465	3.2~3.4	2.80	1.88
			14	210	43	645	3.6~3.8	3.00	2.02
			16	240	50	750	4.1~4.3	3.30	2.22
			28	420	85	1275	5.7~5.9	4.60	3.09
10"	250	254~256	10	150	32	480	3.5~3.7	3.00	2.02
			14	210	44	660	4.4~4.5	3.80	2.55
			16	240	50	750	4.5~4.7	4.20	2.82
			20	300	60	900	5.5~5.7	5.20	3.49
12"	300	305~308	10	150	31	465	3.8~4.0	4.30	2.89
			14	210	43	645	4.3~4.4	4.70	3.16
			16	240	49	735	5.2~5.4	5.80	3.90
14"	350	356~360	10	150	31	465	5.0~5.1	5.40	3.43
14"	350	356~360	14	210	42	630	5.5~5.7	6.00	4.03
16"	400	406~409	7	105	21	315	3.3~3.5	4.80	3.23
			10	150	31	465	4.1~4.3	6.30	4.23
			14	210	42	630	5.5~5.7	7.80	5.24
20"	500	508~514	2	30	6	90	1.7~1.8	2.70	1.81
			3.5	52	10.5	156	2.1~2.2	3.20	2.15
			8	120	24	360	5.0~5.5	8.20	5.51
			10	150	27	392	5.8~6.0	9.40	6.32
